DiyouPCB - How to get it
The materials used to build the printer are very easy to find in any hardware store, DIY store, electronics store or over the Internet. The plastic parts are printed with a 3D printer. The printer base and the top printing bed are manufactured in plywood. For the cart we used an aluminum plate 2mm thick.
How to print the 3D parts
We used a RepRap Prusa I2 3D printer with a hot-end J-head with a 0.35mm nozzle and 1.75mm PLA filament. Most of the pieces have a fill of a 40/60% except the smaller that support greater load/effort and are solid. We recommend to use speeds of 65-80 mm/sec, although this depends on the printer model.
We used Cure 13.06.4 to perform the slicing.

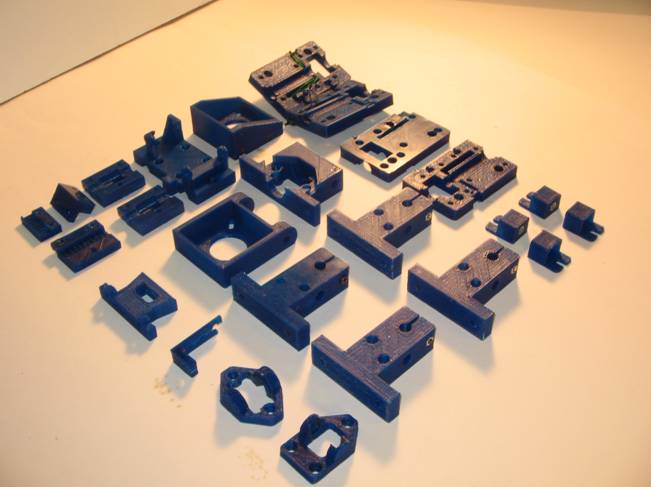

Printed Parts
Below are the printed parts. Can be downloaded from here.
| Quantity | Name | STL File name | Picture | Print instructions |
| 2 |
X-Carriage -Split1 |
x-carriage-split1.stl |  |
40% infill |
| 2 |
X-Carriage - Split2 |
x-carriage-split2.stl |  |
40% infill |
| 4 |
X shaft support |
x-shaft-support.stl |  |
40% infill |
| 1 |
X Motor Bracket |
x-motor-bracket.stl |  |
100% infill |
| 1 |
X Motor Support |
x-motor-support.stl |  |
60% infill, no support structure |
| 1 |
X Tensioner Support |
x-tensioner-support.stl |  |
40% infill, no support structure |
| 1 |
X belt Clamp - Split1 |
x-belt-clamp-split1.stl |  |
100% infill |
| 1 |
X Belt Clamp - Split2 |
x-belt-clamp-split2.stl |  |
100% infill |
| 1 |
X Belt Tensioner |
x-belt-tensioner.stl |  |
100% infill |
| 1 |
Pickup holder |
pickup-holder.stl |  |
40% infill, no support structure |
| 2 |
Pickup holder clamp |
pickup-holder-clamp.stl |  |
40% infill, no support structure |
| 1 |
Y Belt Clamp |
y-belt-clamp.stl |  |
100% infill, with support structure |
| 1 |
Y Motor Bracket |
y-motor-bracket.stl |  |
100% infill |
| 1 |
Y Belt Tensioner |
y-belt-tensioner.stl |  |
100% infill |
| 4 |
Print bed support |
top-printbed-support.stl |  |
60% infill, no support structure |
| 1 | Flat cable clamp | flatcable-clamp.stl |  |
100% infill |

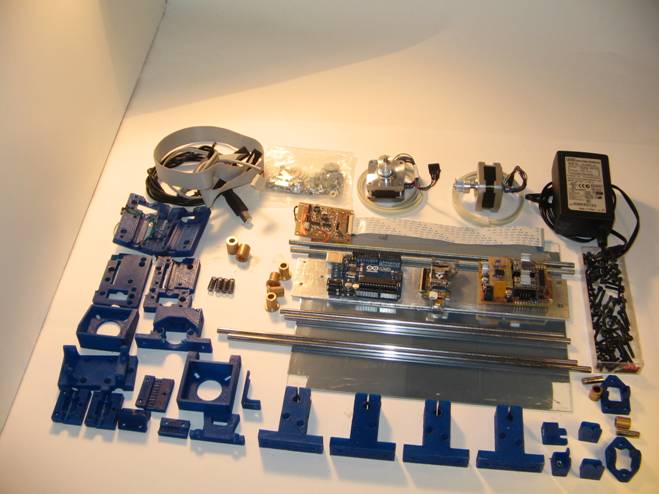

Bill of Materials
|
Quantity |
Description |
Comments |
|
Electronics |
|
|
|
1 |
Toshiba Optical Pickup PHR-803T |
|
|
1 |
Pickup Driver |
|
|
1 |
Printer Controller Shield |
|
|
2 |
A4988 Motor Drivers (Pololu) + 2 radiators |
|
|
1 |
Arduino ONE |
|
|
2 |
Micro-switches end-stop |
DH2C-C5PA |
|
1 |
Micro-switch door(optional) |
DH2C-C5PA |
|
1 |
External power supply 12V 2A |
|
|
1 |
Power socket |
|
|
1 |
Power switch |
|
|
1 |
USB Cable |
|
|
1 |
FPC Pickup Cable 45 tracks .5 pitch |
|
|
1 |
16 tracks Ribbon Cable (50 cm) |
|
|
1 |
4-Way Ribbon Cable (20 cm) + 1 female/ 1 male connector |
Y Motor |
|
2 |
Female 4-pin connectors |
Stepper Motors |
|
1 |
Shielded Cable 1 way + shield (50 cm) |
Focus Error |
|
2 |
NEMA 16 Stepper Motors (Primopal PHB39AND26-401) |
|
|
8 |
PCB Spacers |
|
|
2 |
2-pin female connectors for end-stops + cables |
|
|
2 |
2-pin female connectors to wire Focus Error |
|
|
1 |
Reset Button + 2 wires and 2-pin female connector |
|
|
Hardware |
|
|
|
2 |
16-Tooth T2.5 - 5mm shaft Pulleys |
|
|
1 |
T2.5 x 64cm Timing Belt |
Y axis |
|
1 |
T2.5 x 72cm Timing Belt |
X axis |
|
4 |
Bronze bushes 6mm(d)x10mm(D)x14mm(D'x15mm(L) |
X linear guide |
|
2 |
Bronze bushes 6mm(d)x12mm(D)x15mm(L) |
Y linear guide |
|
2 |
Bronze bushes 6mm(d)x10mm(D)x12mm(L) |
Idle Pulleys |
|
2 |
Steel Shafts 6mm x 20mm |
Idle Pulleys shafts |
|
2 |
Steel Shafts 6mm diameter x 327mm |
X linear guide |
|
2 |
Steel Shafts 6mm diameter x 268mm |
Y linear guide |
|
2 |
Threaded rods M6 x 285mm |
|
|
3 |
Springs 6mm(Dh)x4mm(dd) x 15mm(the) - 0.9mm wire -7.85 N/mm |
|
|
12 |
M6 Nuts |
|
|
12 |
M6 washers |
|
|
85 |
Allen screws, nuts and washers, M3 (of various measures.) |
|
|
1 |
Aluminum plate 263mm x 50mm x 2mm |
|
|
1 |
Set of 3D printed parts |
|
|
1 |
Plywood 385mm x 340mm x 10mm |
Base |
|
1 |
Plywood 328mmx270mmx8mm |
Printing bed |
|
1 |
Black cardboard 210mmx 170mm x5mm |
To make the door. |
|
1 |
Glass 232mmx 191mm x 1.6mm |
|
|
1 |
Solar Film 250mm x 200mm |
|
|
1 |
Aluminum foil 20mm x 20mm |
For the focus point |
|
1 |
Double-sided adhesive tape |
To paste the glass |
|
1 |
Single-sided adhesive tape |
|
|
Software |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To download files of the parts, please go to the download page.
